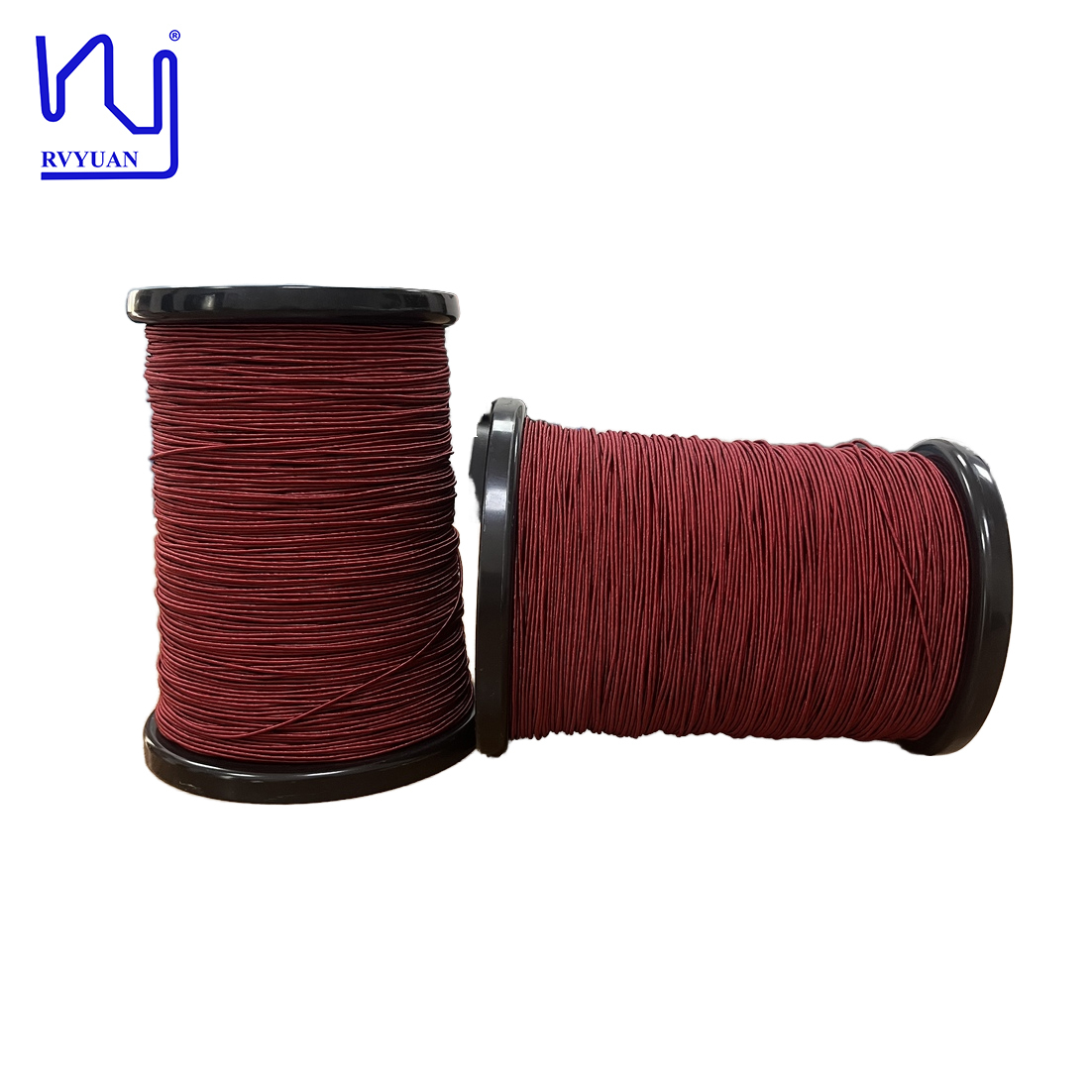

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: RVYUAN
Chứng nhận: ISO9001/ISO14001 /UL/SGS
Số mô hình: Ustc
Số lượng đặt hàng tối thiểu: 10kg
Giá bán: negotiable
chi tiết đóng gói: Đoạn đệm với thùng carton
Thời gian giao hàng: 2-15 ngày làm việc
Điều khoản thanh toán: T/ t/ paypal
Khả năng cung cấp: Đáp ứng nhu cầu của bạn
Thông tin chi tiết
Đường kính: 0,08mm Nhiệt độ: 155
Chứng nhận: IEC/NEMA/JIS/RoHS/ISO dây dẫn: đồng
Sợi: 270 Điện áp phân hủy: Min.1100
Chất liệu bìa: nylon Tên sản phẩm: Dây Litz bọc lụa tần số cao 0,08mm 27 sợi
Từ khóa: Dây Litz bọc lụa tần số cao 0,08mm 27 sợi
Làm nổi bật:

silk covered litz wire

,

high frequency litz wire

,

27 strands litz wire


Mô tả sản phẩm

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire 0
