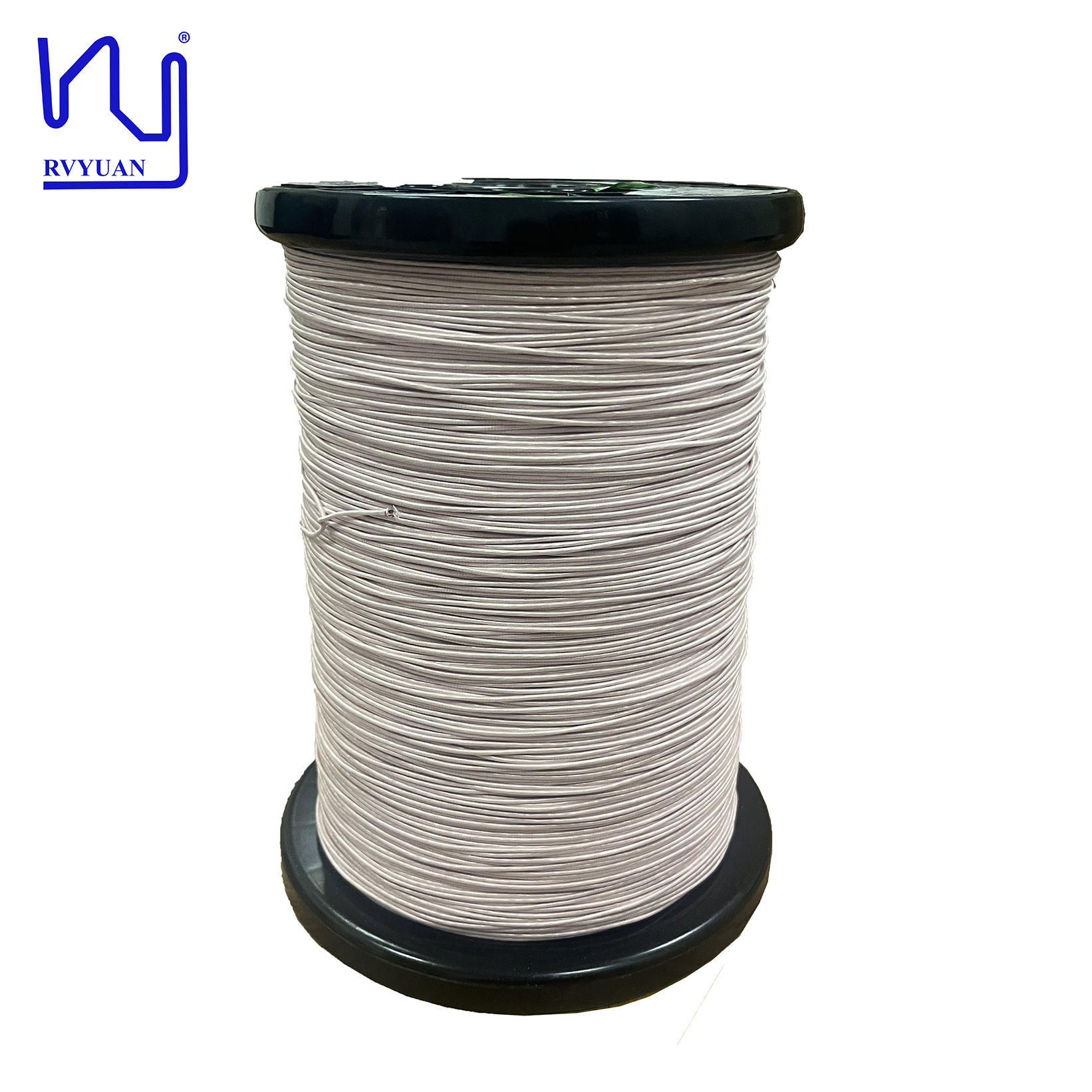

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Thông tin cơ bản

Nguồn gốc:	Trung Quốc
Hàng hiệu:	RVYUAN
Chứng nhận:	ISO9001/ISO14001 /UL/SGS
Số mô hình:	Ustc

Số lượng đặt hàng tối thiểu:	10kg
Giá bán:	negotiable
chi tiết đóng gói:	Đoạn đệm với thùng carton
Thời gian giao hàng:	2-15 ngày làm việc
Điều khoản thanh toán:	T/ t/ paypal
Khả năng cung cấp:	Đáp ứng nhu cầu của bạn

Giá tốt nhất Liên hệ với bây giờ

Thông tin chi tiết

Đường kính:	0,1mm	Nhiệt độ:	155
Chứng nhận:	IEC/NEMA/JIS/RoHS/ISO	Nhạc trưởng:	Đồng
Sợi:	100	Điện áp phân hủy:	Min.1100
Che tài liệu:	nylon	Tên sản phẩm:	Dây Litz bọc lụa USTC UEW 0,1mm tùy chỉnh cho cuộn dây sạc không dây
Từ khóa:	Dây Litz bọc lụa USTC UEW 0,1mm tùy chỉnh cho cuộn dây sạc không dây
Làm nổi bật:	0.1mm silk covered Litz wire , customized USTC Litz wire for wireless charging , stranded silk Litz wire with warranty

Mô tả sản phẩm

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Silk-covered Litz wire is used in applications that require high efficiency and low loss, particularly at high frequencies. Common applications include windings for transformers, motors, and high-frequency inductors, as well as in high-power lighting, video, and audio equipment. The silk covering adds insulation and durability while the Litz construction minimizes AC resistance.

Applications

Transformers and Motors: Used for windings in transformers and motors where efficiency is critical.
High-frequency electronics: Suitable for high-frequency applications such as RF transformers and transducers.
Inductors: Used in high-frequency and antenna inductors.
Audio and Video Equipment: Utilized in high-fidelity audio systems and other video equipment.
Industrial and Scientific Equipment: Found in high-power lighting systems, ultrasonic equipment, and inductive heating systems.
Automotive and Aerospace: Used in electronic components for these industries.

Why It's Used

Efficiency: The Litz construction minimizes skin and proximity effects, reducing resistance and energy loss.
Insulation: The silk cover provides an extra layer of electrical insulation and mechanical protection.
Performance: It improves the "Q" value and overall performance in high-frequency circuits.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!
