| Place of Origin: | China |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Class 220 |
| Minimum Order Quantity: | 10KG |
| Giá bán: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | T/T/Paypal |
| Supply Ability: | Satisfy your demand |
| Shape: | Rectangular | Width: | 3.0mm |
|---|---|---|---|
| Thickness: | 0.2mm | Applications: | Motor, transformer |
| Thermal Grade: | 180 | Key word: | Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor |
| Enamel coating: | UEW | ||
| Làm nổi bật: | 3mm enameled insulated copper wire,rectangular copper winding wire,custom inductor enameled copper wire |
||

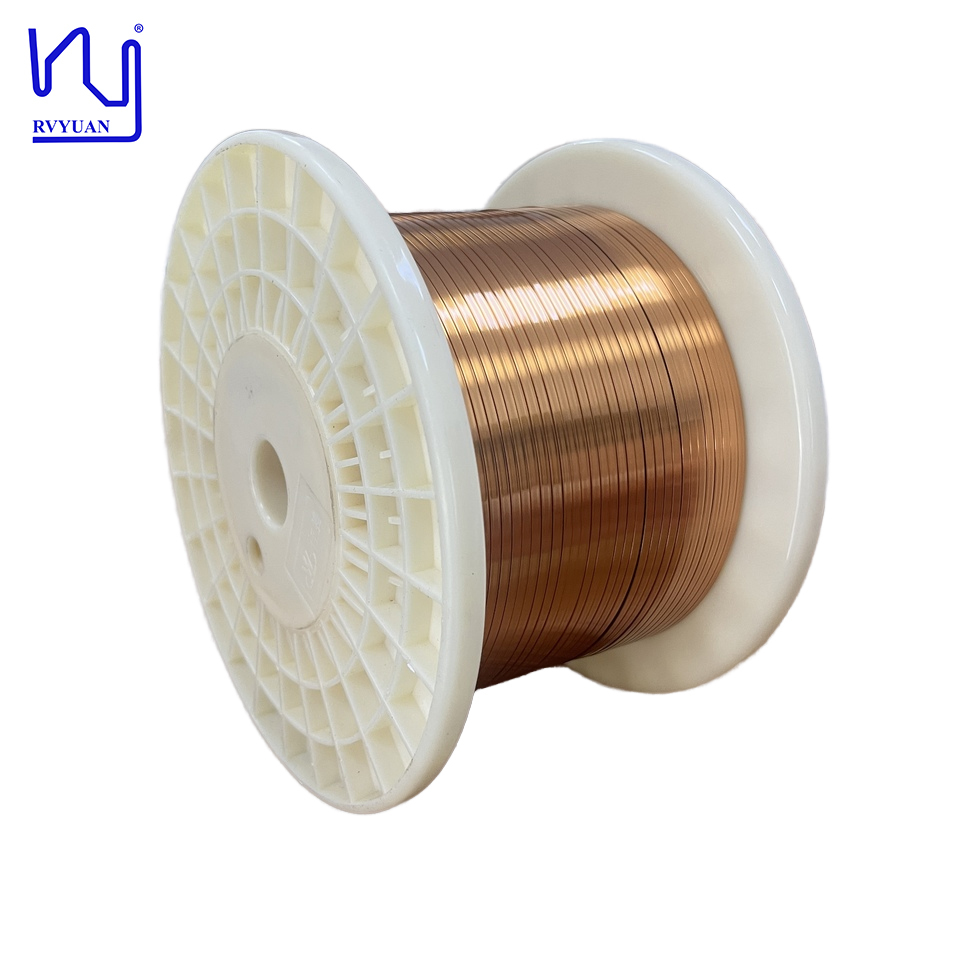

Custom Flat/Rectangular 3mm Enameled Insulated Copper Winding Wire for Inductor
This enameled flat copper wire can be soldered directly without stripping the enameled coating. This convenience significantly reduces assembly time and labor costs, making it an ideal choice for manufacturers. The ability to solder directly to the wire ensures a secure and reliable connection, crucial in applications where electrical integrity is paramount.
| Item | Conductor dimension | Unilateral insulation layer thickness | Overall dimension | Breakdown voltage | |||
|---|---|---|---|---|---|---|---|
| Thickness | Width | Thickness | Width | Thickness | Width | ||
| Unit | mm | mm | mm | mm | mm | mm | kv |
| SPEC | AVE 0.300 | 3.000 | 0.025 | 0.025 | / | / | |
| Max 0.309 | 3.060 | 0.040 | 0.040 | 0.35 | 3.1 | ||
| Min 0.191 | 2.940 | 0.010 | 0.010 | / | / | 0.700 | |
| No. 1 | 0.301 | 2.998 | 0.020 | 0.029 | 3.341 | 3.045 | 1.320 |
| No. 2 | 1.085 | ||||||
| No. 3 | 1.030 | ||||||
| No. 4 | 0.960 | ||||||
| No. 5 | 1.152 | ||||||
| No. 6 | / | ||||||
| No. 7 | / | ||||||
| No. 8 | / | ||||||
| No. 9 | |||||||
| No. 10 | / | ||||||
| Avg | 0.301 | 2.998 | 0.020 | 0.029 | 0.341 | 3.045 | 1.109 |
| Number of reading | 1 | 1 | 1 | 1 | 1 | 1 | 5 |
| Min. reading | 0.301 | 2.988 | 0.020 | 0.029 | 0.341 | 3.045 | 0.960 |
| Max. reading | 0.031 | 2.988 | 0.020 | 0.029 | 0.341 | 3.045 | 1.320 |
| Range | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 0.000 | 1.320 |
| Result | OK | OK | OK | OK | OK | OK | OK |
