| Place of Origin: | China |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | ISO9001/ISO14001 /UL/SGS |
| Model Number: | USTC |
| Minimum Order Quantity: | 10kg |
| Giá bán: | negotiable |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Diameter: | 0.071mm | Temperature: | 155/180 |
|---|---|---|---|
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO | Conductor: | Copper |
| Strands: | 840 | Breakdown voltage: | 1300 |
| Insulation: | UEW | Product name: | Manufacturer Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters |
| Key word: | Manufacturer Solderable 840 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters | ||
| Làm nổi bật: | 840 Strands 0.071mm Litz Wire,nylon wrapped copper silk,solar inverters Litz Wire |
||

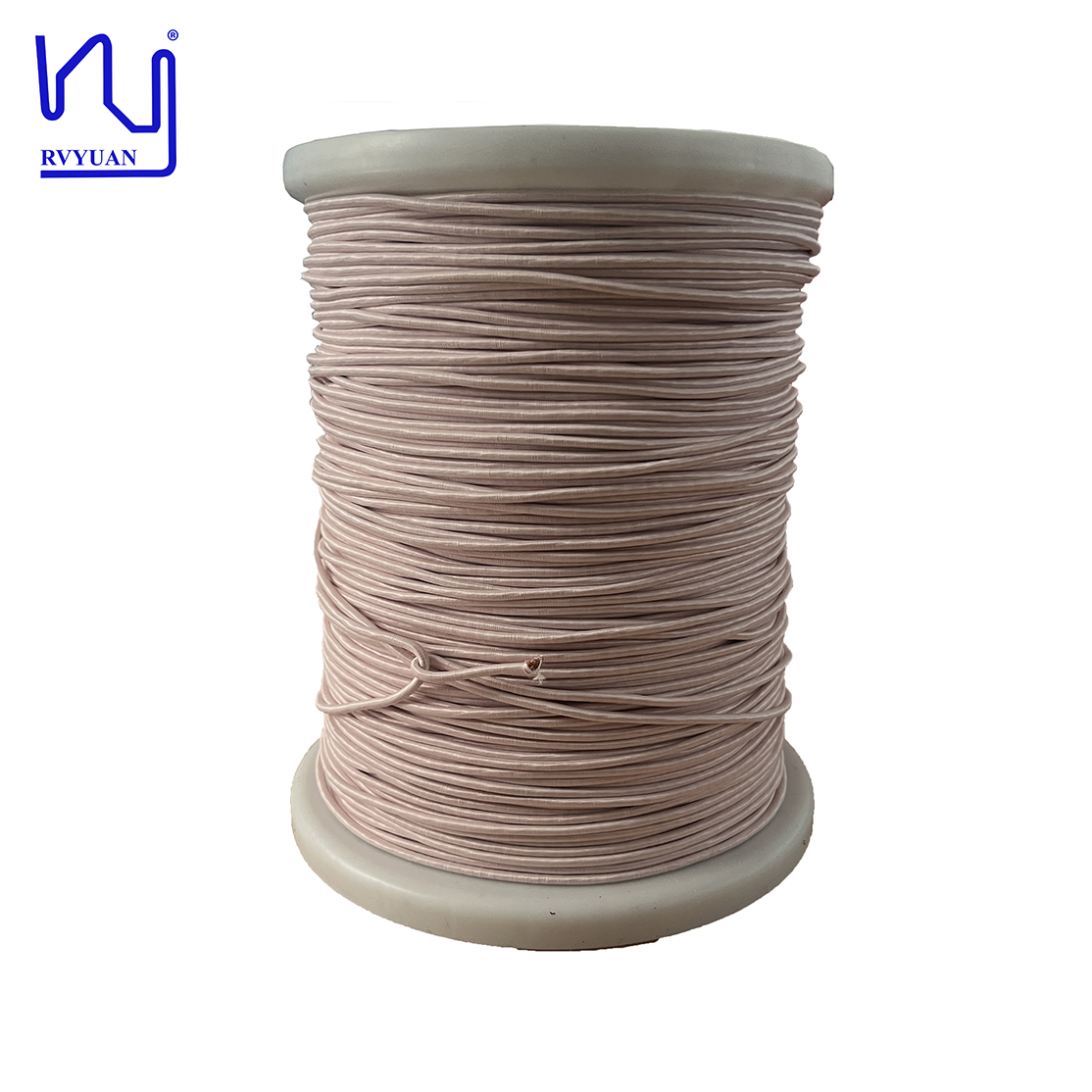

Manufacturer Solderable 84 StrandsX0.071mm Nylon Wrapped Copper Silk Covered Litz Wire for Solar Inverters
This is a custom-made silk covered litz wire, featuring a conductor diameter of 0.071mm made of pure copper with polyurethane enamel. This enameled copper wire is available in two temperature ratings: 155 degrees Celsius and 180 degrees Celsius. It is currently the most commonly used wire for making silk covered litz wire and can generally meet your product’s temperature requirements.
|
Outgoing test of silk covered litz wire |
Spec: 0.071x840 |
Model: 2USTC-F |
|
|
Item |
Standard |
Test result |
|
|
Outer conductor diameter(mm) |
0.071-0.084 |
0.079 |
0.080 |
|
Conductor diameter(mm) |
0.071±0.003 |
0.068 |
0.070 |
|
Overall diameter (mm) |
Max.3.20 |
2.65 |
2.85 |
|
Pitch(mm) |
40±10 |
√ |
√ |
|
Max resistance (Ω/m at20℃) |
Max. 0.005940 |
0.005394 |
0.005400 |
|
Breakdown voltage Mini (V) |
950 |
2600 |
2700 |
