| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO |
| Số mô hình: | UEWH |
| Số lượng đặt hàng tối thiểu: | 10kg |
| Giá bán: | negotiable |
| chi tiết đóng gói: | ống chỉ với thùng carton |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | T / T, Paypal |
| Khả năng cung cấp: | Đáp ứng nhu cầu của bạn |
| Shape: | Rectangular | Width of conductor: | 2.4mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.5mm |
| Applications: | Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor | Thermal Grade: | 220 |
| Key word: | Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor | ||
| Làm nổi bật: | Class 180 Enameled Flat Copper Wire,0.06mm Enameled Flat Copper Wire,0.8mm Enameled Flat Copper Wire |
||

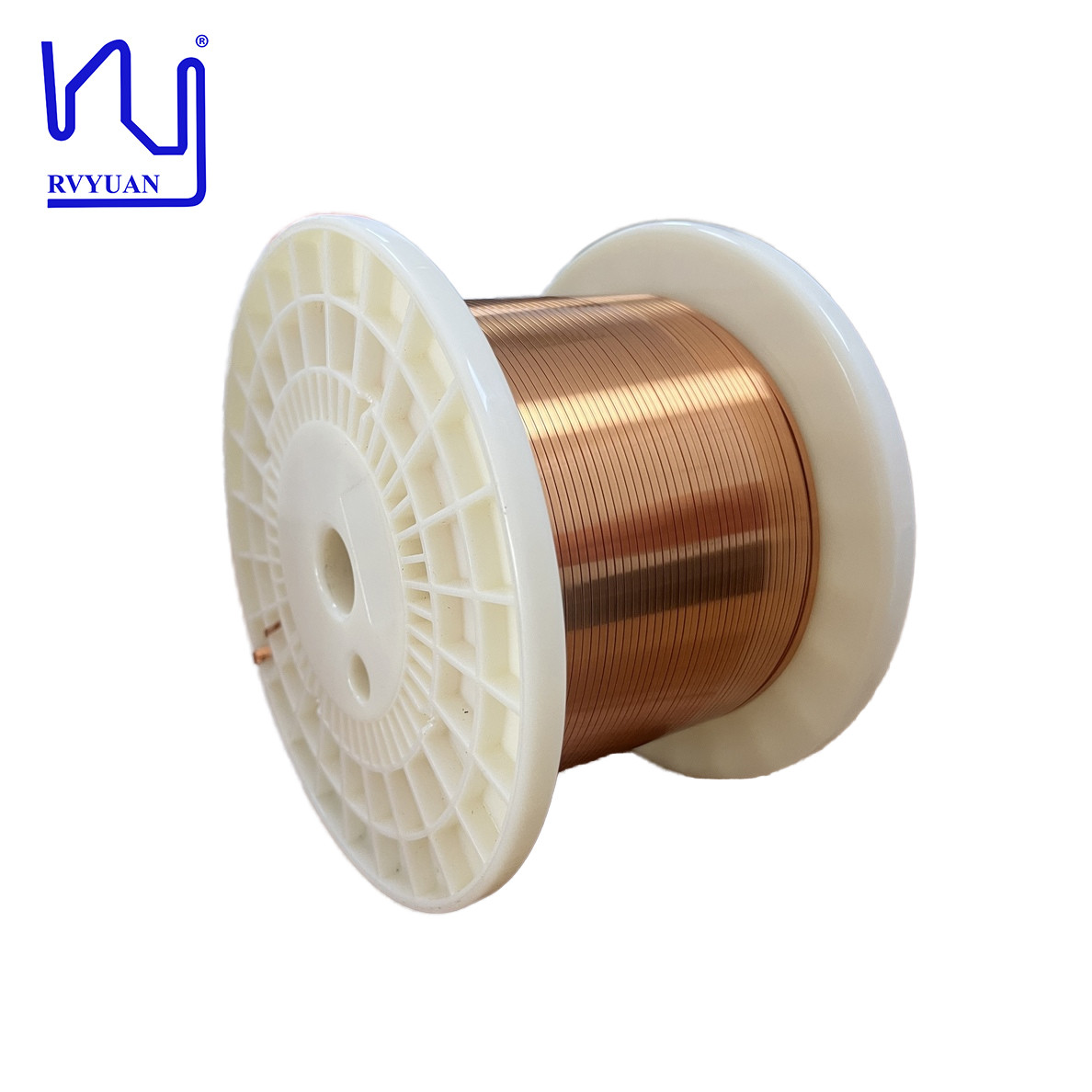

Polyurethane Class 180 0.50mm 0.06mm 0.8mm Enameled Flat Copper Wire For Motor
Our enameled flat copper wires are available in a variety of temperature grades from 180°C to 240°C, making them ideal for high temperature applications. This versatility ensures our wires meet the needs of a variety of industries including automotive, aerospace and renewable energy.
|
Item
|
Conductor dimension
|
Unilateral insulation thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance |
||||
| T | W | T | W |
T
|
W | ||||
| Unit |
mm
|
mm
|
mm | mm |
mm |
mm |
kv |
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.400
|
0.025 | / |
/
|
/ | ||
|
Max
|
0.509
|
2.460
|
0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
|
Min
|
0.491
|
2.340 | 0.010 |
|
0.700 | ||||
|
No. 1
|
0.501
|
2.405 | 0.039 | 0.544 |
0.544
|
2.483
|
4.880 |
14.437 |
|
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
|
Avg
|
0.501
|
2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
|
No.of reading
|
3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
|
Min. reading
|
0.500 | 2.405 | 0.021 | 0.022 |
0.543
|
2.483 | 3.660 | ||
|
Max. reading
|
0.502 | 2.407 | 0.023 | 0.039 |
0.545
|
2.485 | 4.880 | ||
|
Range
|
0.002
|
0.002
|
0.002 | 0.001 |
0.002
|
0.002
|
1.220 | ||
|
Result
|
OK
|
OK
|
OK
|
OK |
OK
|
OK
|
OK
|
OK | |
