| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO |
| Số mô hình: | UEWH |
| Số lượng đặt hàng tối thiểu: | 10kg |
| Giá bán: | negotiable |
| chi tiết đóng gói: | ống chỉ với thùng carton |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | T / T, Paypal |
| Khả năng cung cấp: | Đáp ứng nhu cầu của bạn |
| Shape: | Rectangular | Width of conductor: | 2.4mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.025mm | Thickness of conductor: | 0.5mm |
| Applications: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor | Thermal Grade: | 220 |
| Key word: | UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor | ||
| Làm nổi bật: | UEWH Solderable Flat Copper Wire,Motor Solderable Flat Copper Wire,Solderable Enameled Flat Copper Wire |
||

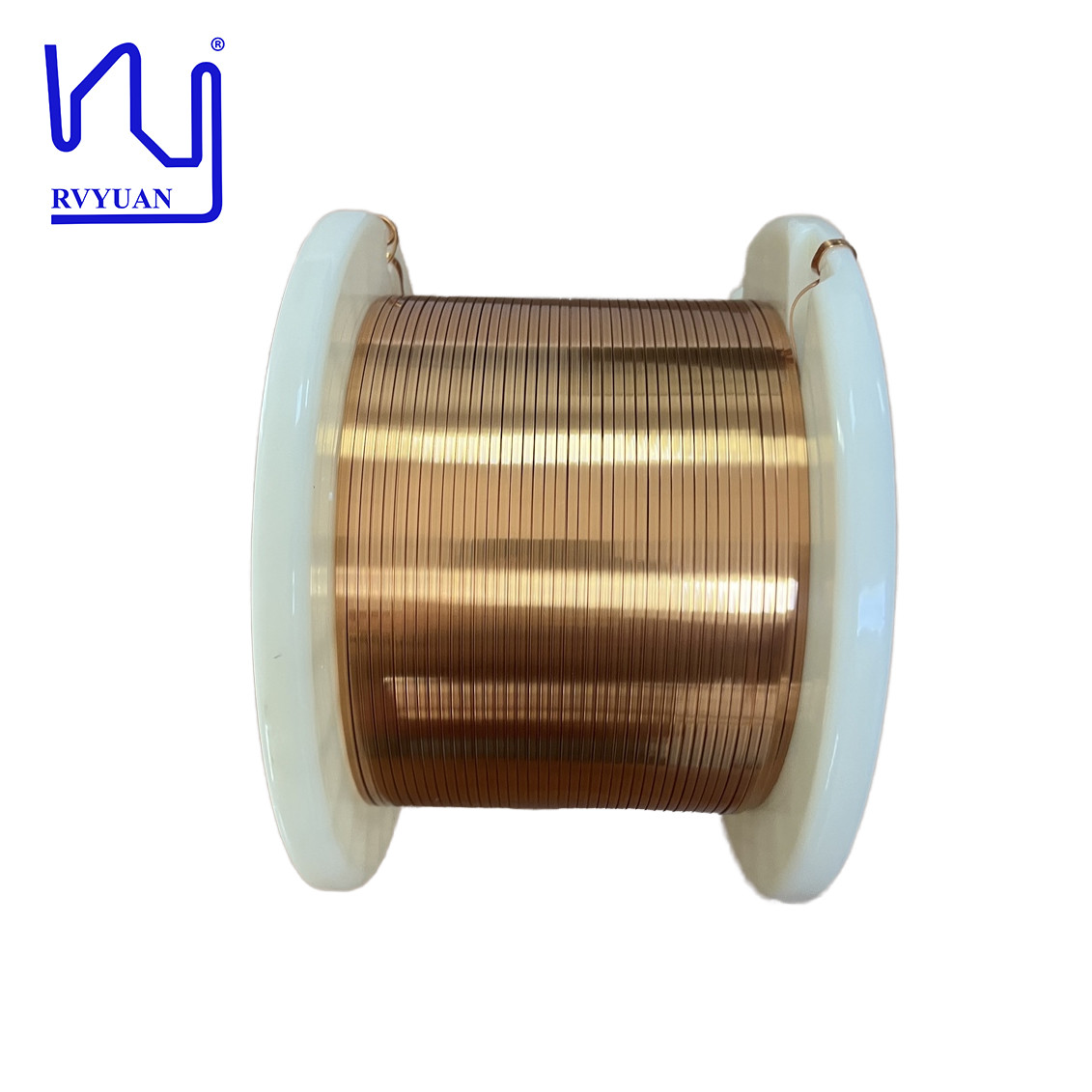

UEWH Solderable 0.50mmx2.40mm Enameled Flat Copper Wire For Motor
Enameled rectangular copper wire is an indispensable material in the manufacture of motors and transformers, where reliability and heat resistance are critical. The rectangular design allows for optimal packing density, ensuring more wires fit in a given space, which is essential for maximizing the efficiency of electrical equipment. Our wires are carefully designed for excellent conductivity and very low energy loss, making them the preferred choice of engineers and manufacturers.
|
Item
|
Conductor dimension
|
Unilateral insulation thickness |
Overall dimension
|
Dielectric breakdown voltage
|
Conductor resistance | ||||
| T | W | T | W |
T
|
W | ||||
| Unit |
mm
|
mm
|
mm | mm |
mm |
mm |
kv |
Ω/km 20℃ | |
|
SPEC
|
AVE
|
0.500
|
2.400
|
0.025 | / |
/
|
/ | ||
|
Max
|
0.509
|
2.460
|
0.040 | 0.550 | 0.0550 | 2.500 | 16.090 | ||
|
Min
|
0.491
|
2.340 | 0.010 |
|
0.700 | ||||
|
No. 1
|
0.501
|
2.405 | 0.039 | 0.544 |
0.544
|
2.483
|
4.880 |
14.437 |
|
| No. 2 | 0.500 | 2.406 | 0.039 | 0.545 | 0.545 | 2.485 | 4.331 | ||
| No. 3 | 0.502 | 2.407 | 0.039 | 0.543 | 0.543 | 2.484 | 3.660 | ||
| No. 4 | 4.515 | ||||||||
| No. 5 | 4.600 | ||||||||
| No. 6 | 4.770 | ||||||||
| No. 7 | 4.440 | ||||||||
| No. 8 | 4.250 | ||||||||
| No. 9 | 3.990 | ||||||||
| No. 10 | 3.750 | ||||||||
|
Avg
|
0.501
|
2.406 | 0.022 | 0.039 | 0.544 | 2.484 | 4.319 | ||
|
No.of reading
|
3 | 3 | 3 | 3 | 3 | 3 | 10 | ||
|
Min. reading
|
0.500 | 2.405 | 0.021 | 0.022 |
0.543
|
2.483 | 3.660 | ||
|
Max. reading
|
0.502 | 2.407 | 0.023 | 0.039 |
0.545
|
2.485 | 4.880 | ||
|
Range
|
0.002
|
0.002
|
0.002 | 0.001 |
0.002
|
0.002
|
1.220 | ||
|
Result
|
OK
|
OK
|
OK
|
OK |
OK
|
OK
|
OK
|
OK | |
