| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | ISO9001/ISO14001 /UL/SGS |
| Số mô hình: | Ustc |
| Số lượng đặt hàng tối thiểu: | 10kg |
| Giá bán: | negotiable |
| chi tiết đóng gói: | ống chỉ với thùng carton |
| Thời gian giao hàng: | 2-15 ngày làm việc |
| Điều khoản thanh toán: | Đàm phán |
| Khả năng cung cấp: | Đáp ứng nhu cầu của bạn |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire | Key word: | 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire |
| Làm nổi bật: | 0.1mm Stranded Wire,2USTC-F Copper Litz Wire,Red Silk Litz Wire |
||

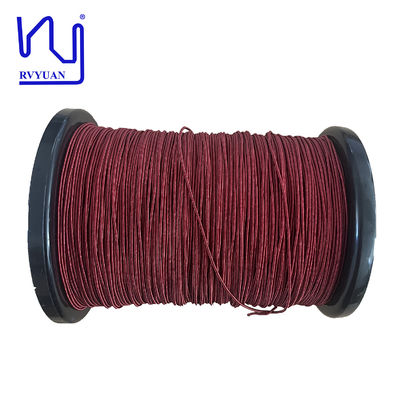

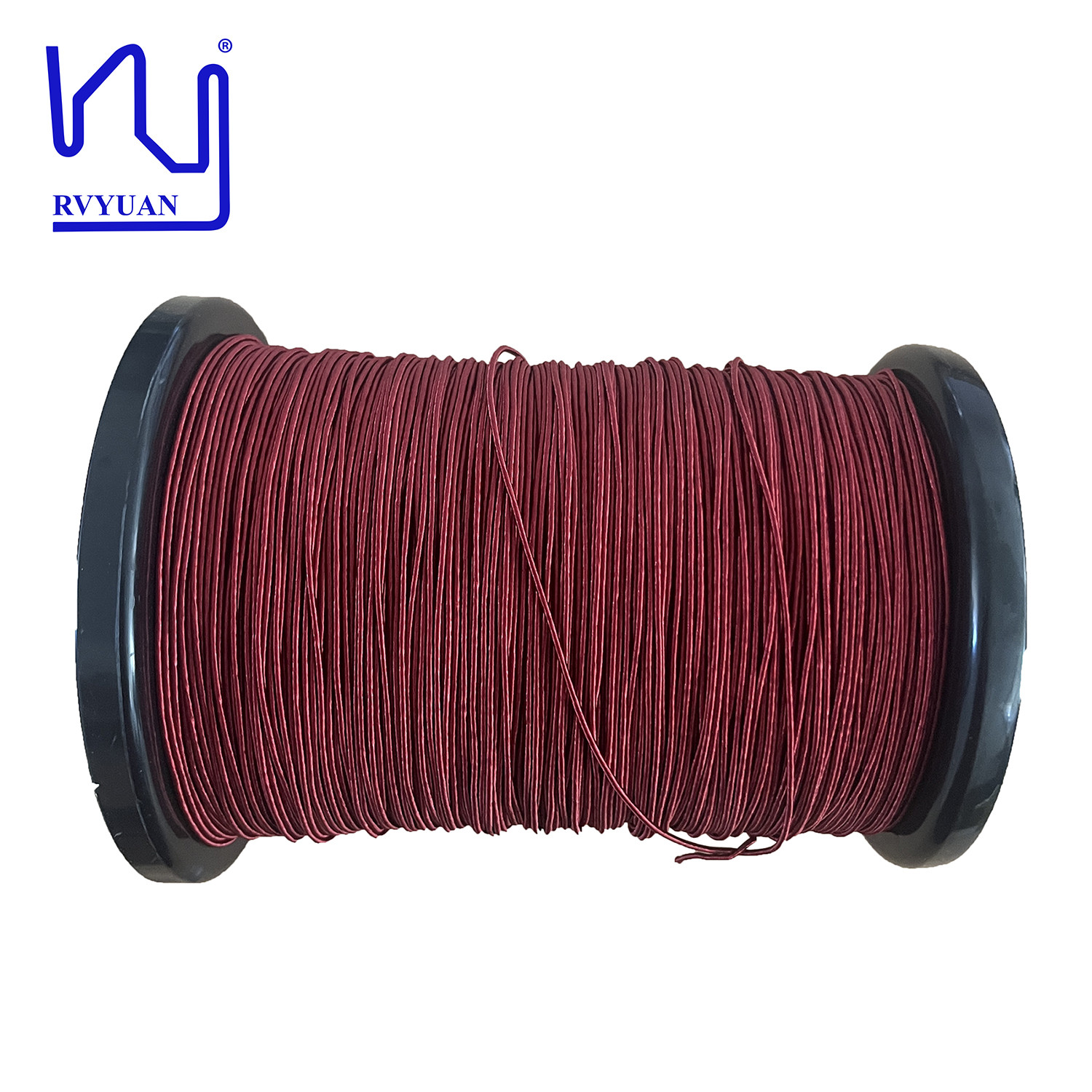

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire
Silk covered Litz wire is designed to minimize eddy current losses, which are critical in transformer winding. Silk covered Litz wire is an indispensable component for engineers and manufacturers seeking to improve transformer performance and reliability. The combination of Silk covered Litz wire and Litz wire technology not only improves electrical performance, but also helps extend the life of the winding, making it a smart investment for any project.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
