| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | RVYUAN |
| Chứng nhận: | ISO9001/ISO14001 /UL/SGS |
| Số mô hình: | Ustc |
| Số lượng đặt hàng tối thiểu: | 10kg |
| Giá bán: | negotiable |
| chi tiết đóng gói: | ống chỉ với thùng carton |
| Thời gian giao hàng: | 2-15 ngày làm việc |
| Điều khoản thanh toán: | Đàm phán |
| Khả năng cung cấp: | Đáp ứng nhu cầu của bạn |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| Chứng nhận: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire | Key word: | 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire |
| Làm nổi bật: | Red Polyester Covered Litz Wire,200 Strands Polyester Covered Litz Wire,Polyester Covered 0.1mm Litz Wire |
||

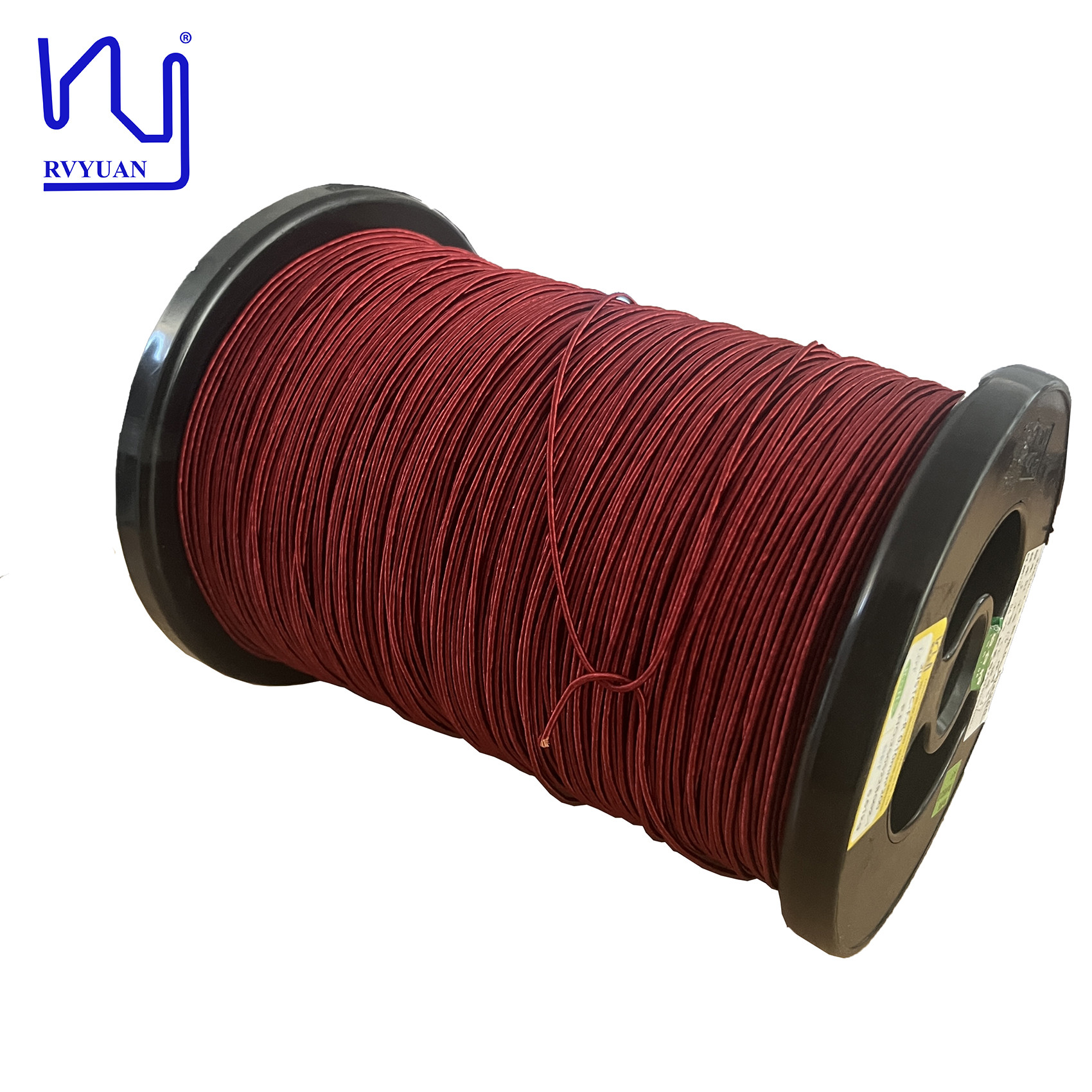

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
This innovative wire features a unique bright red polyester outer covering that not only enhances aesthetics, but also offers exceptional durability and environmental resistance. Its inner core is carefully twisted with 200 strands of 0.1 mm enameled copper wire to ensure optimal conductivity and performance. Rated to 155 degrees Celsius, this wire is ideal for transformer applications because it can withstand the harsh environment of high frequency operation.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
