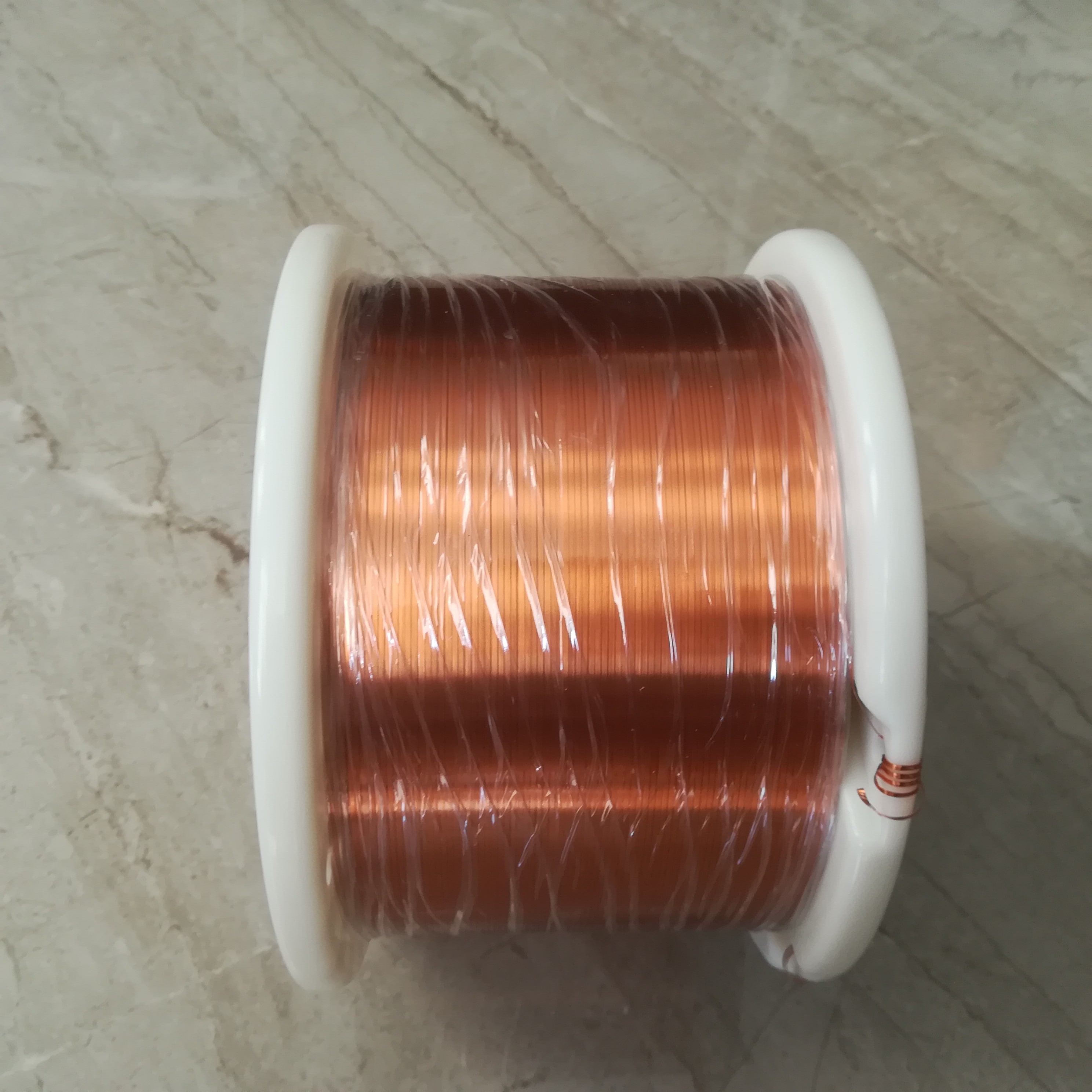

Rectangular AIW 220 9.0x0.7mm Enameled Flat Copper Wire For Motor Windings

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: RVYUAN
Chứng nhận: IEC/NEMA/JIS/RoHS/ISO
Số mô hình: AIW220
Số lượng đặt hàng tối thiểu: 10kg
Giá bán: negotiable
chi tiết đóng gói: ống chỉ với thùng carton
Thời gian giao hàng: 7 ngày
Điều khoản thanh toán: T / T, Paypal
Khả năng cung cấp: Đáp ứng nhu cầu của bạn
Thông tin chi tiết
Shape: Rectangular Width of conductor: 9.0mm
Unilateral Insulation Layer Thickness (Width): 0.025mm Thickness of conductor: 0.7mm
Applications: Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles Thermal Grade: 220
Key word: Cusntomized Rectangular Copper Conductor 0.1mm Enameled Flat Copper Wire for Vehicles
Làm nổi bật:

0.7mm Rectangular Copper Wire

,

AIW 220 Rectangular Copper Wire

,

Motor Windings Rectangular Copper Wire


Mô tả sản phẩm

Rectangular Wire AIW 220 9.0x0.7mm Enameled Flat Copper Wire for Motor Windings

we know that every project is unique, so we offer custom options to tailor our enameled rectangular copper wire to your specific needs. Our professional team is ready to assist you in selecting the right specifications to ensure that the product you receive not only meets your expectations, but even exceeds them. Experience the reliability and performance of Ruiyuan enameled rectangular copper wire now and take your project to new heights.

Conductor Dimension(mm)

Thickness of single insulation(mm)

Overall Dimension(mm)

Max. Conductor Resistance 20℃(Ω/km)

Breakdown voltage(kv)

Width

Thickness

Width

Thickness

9.000±0.08

0.700±0.03

0.025±0.015

Max. 9.10

Max.0.78

2.978

0.7 Min



Rectangular AIW 220 9.0x0.7mm Enameled Flat Copper Wire For Motor Windings 0
